What Is a Radiant Barrier?
A radiant barrier is a highly reflective material — typically a layer of aluminium foil — installed in the home's attic roof space to protect insulation from radiant heat. Many homeowners simply call it attic foil.
Unlike conventional insulation, radiant barriers don't slow the speed of heat transfer. Instead, they work by reflecting heat across a gap, stopping it from transferring any further. This performance comes down to two properties: reflectivity –how much heat the foil bounces back, and emissivity –how little heat it radiates onward.
Installing a radiant barrier in southern climate zones with hotter summers - especially areas that reach triple digits – is especially helpful since it cuts heat buildup, eases the load on the cooling system, and keeps interiors comfortable. This helps reduce attic heat in the South and other regions where summer temperatures push attics to extremes. Paired with proper insulation, it's one of the simplest paths to energy-efficient attic insulation.
Common Radiant Barrier Insulation Installation Methods
Choosing the right radiant barrier insulation installation method depends largely on your HVAC setup, whether the project is new construction or a retrofit, and the local climate. There are three common methods:
Staple-Up Radiant Barrier Installation

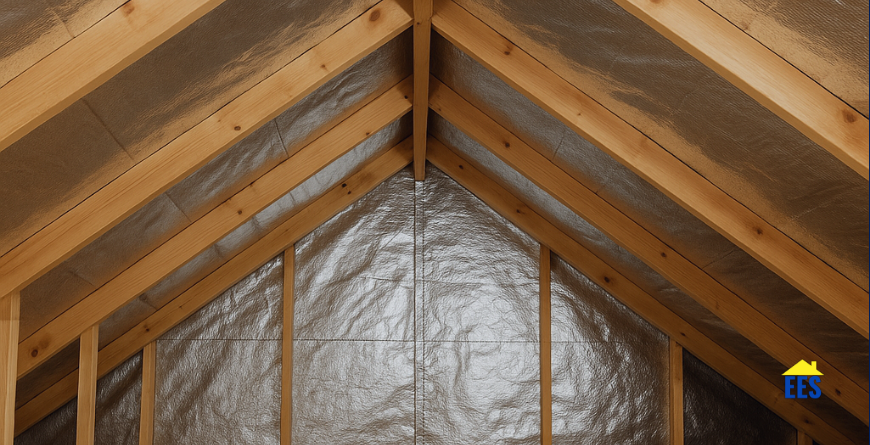

With this radiant barrier foil installation method, reflective foil is attached to the underside of the roof rafters, creating a separation between the cooler attic space below and the hot roof decking above. It's best suited to sunny, hot climates and homes with HVAC ductwork running through the attic.
Radiant Barrier Decking Systems
These systems come pre-fabricated, with the radiant barrier already bonded to the underside of the roof sheathing. They're typically installed during a roof replacement or new construction since the barrier is built into the decking itself.
Reflective Foil Over Existing Insulation
In some situations, reflective foil may be installed on top of existing insulation as part of a radiant barrier system. The best installation method depends on the attic design and the product being used. This is an excellent option for homes that already meet insulation standards but still struggle with heat in the roof space while not disrupting the insulation already in the attic.
Choosing the Right Radiant Barrier Size and Coverage
Selecting the right radiant barrier sizing options ensures performance isn't compromised. Key factors to consider include:
Calculating Attic Coverage Requirements
Coverage depends on the attic size, roof layout, and installation method. Measuring attic width, length, and roof pitch helps determine how many sheets or rolls are needed for continuous, full coverage.
Commercial vs. Residential Installation Needs
Residential attics generally call for standard roll widths fitted between trusses or rafters. Commercial buildings, particularly those with low-slope or large flat roofs, often need wider panels or rolls designed for different structural layouts and spans. For facility managers focused on commercial building energy efficiency, commercial radiant barrier solutions are typically scaled to match these larger, more complex roof structures.
Radiant Barrier Widths and Applications
Radiant barriers come in different widths to suit different design needs. In standard attic designs, barriers are usually installed along the rafter direction for complete coverage, while in taller attics, they're placed parallel to the rafters for easier handling.
Benefits of Radiant Barrier Installation
Lower Cooling Costs and HVAC Strain
Radiant barriers reflect heat well before it accumulates in the attic, reducing the load on air conditioning systems. This translates into real radiant barrier energy savings, extends the lifespan of HVAC equipment, and helps reduce cooling costs over time — all while supporting broader HVAC efficiency improvements.
Improved Indoor Comfort and Energy Efficiency
With less heat reaching the living space, rooms below stay consistently comfortable. Combined with proper ventilation and insulation, a radiant barrier is one of the more effective energy-efficient solutions for better attic temperature control and overall solar heat reduction in buildings.
Final Thoughts: Improving Building Efficiency
An attic radiant barrier is a simple and low-maintenance upgrade, particularly for buildings in hot climates. Whatever attic radiant barrier installation method you choose, pay close attention to sizing and coverage. As far as attic heat reduction solutions go, a radiant barrier remains one of the easiest upgrades available — improving indoor comfort and reducing cooling costs for years to come.
